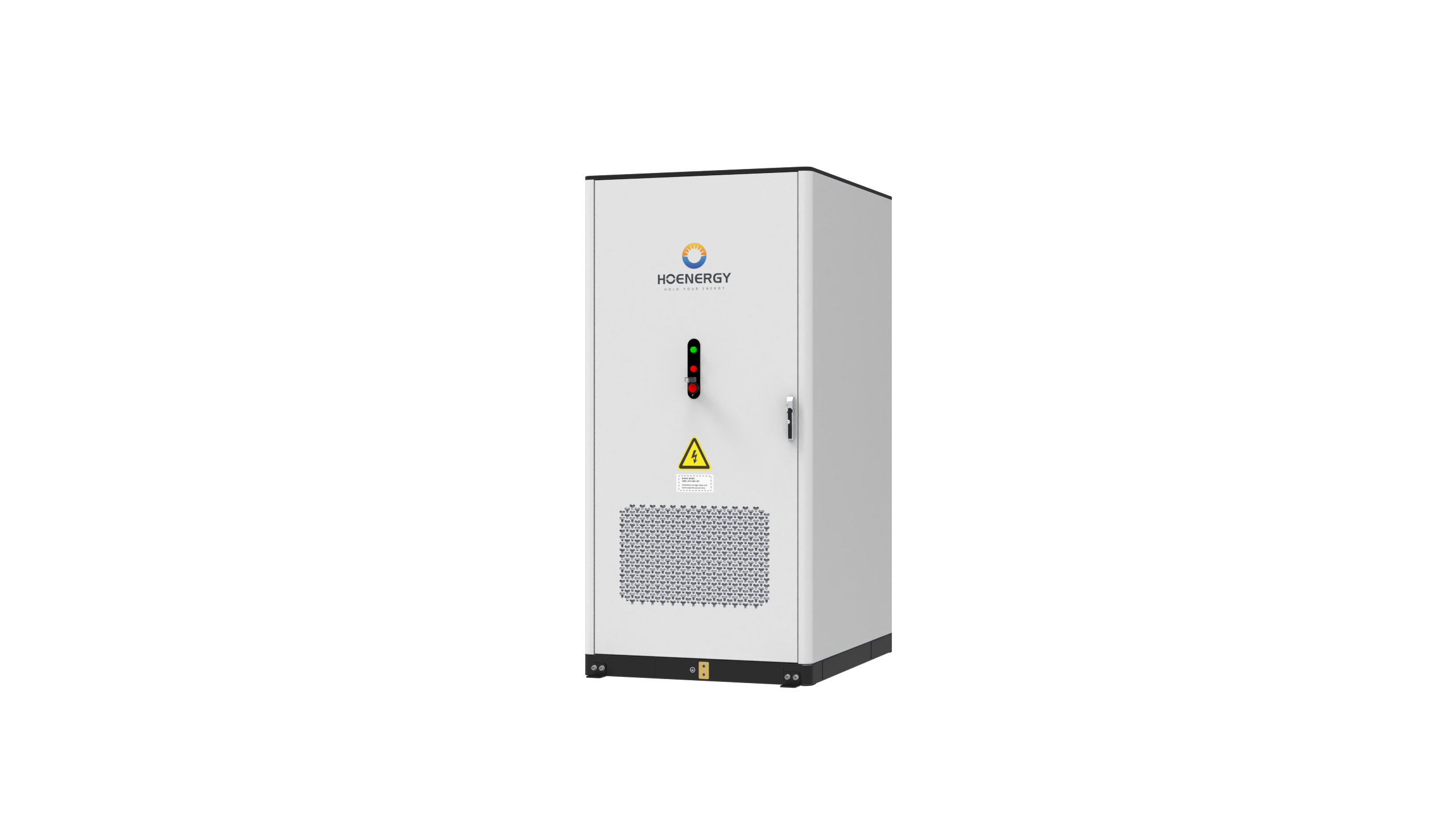

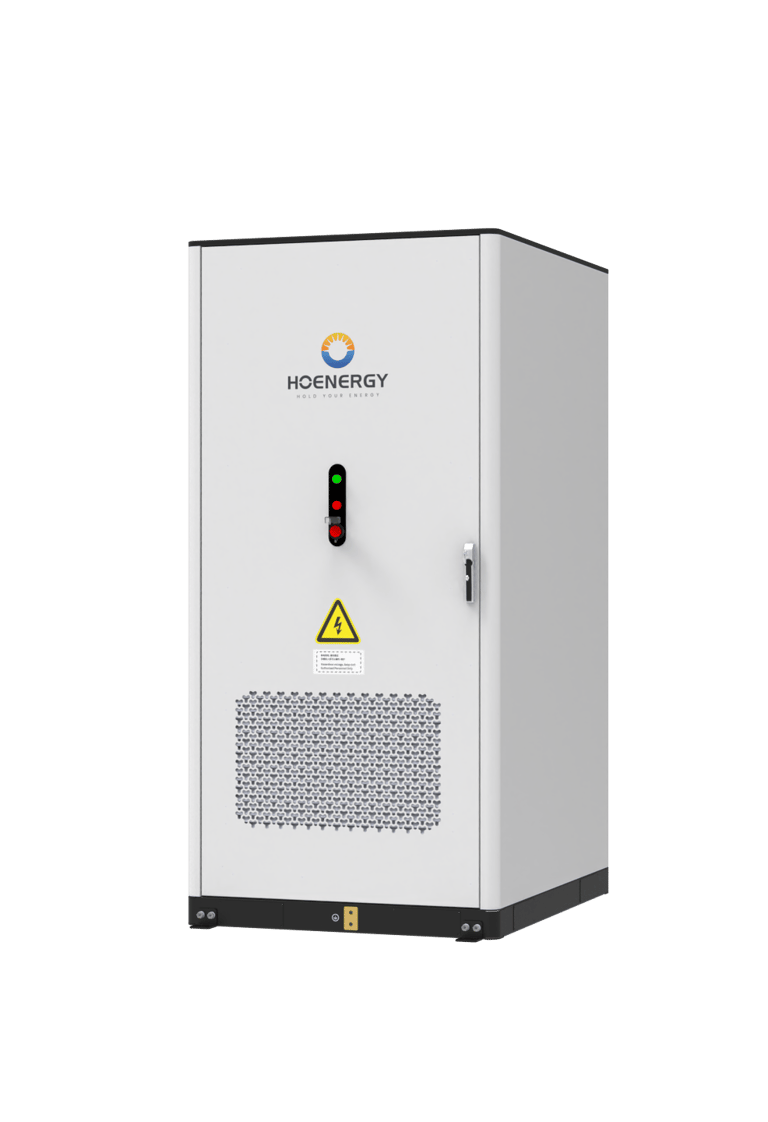

D Cube (S Series 261kwh)

AC/DC System- Batteries, Battery Management System, Thermal Control System,Fire Detecting and Suppression System, Power Conversion SystemLocal Control System

Rated AC Power- 135kW

Rated Capacity- 261kWh

C-rate- 0.5C@25℃

Rated AC Voltage - 400 (3P,N,PE) or (3P,PE)

Grid Frequency- 50/60

Cooling method - Liquid cooling

Ambient Temperature - -25~+55(Load drop higher than 50)

Cube Dimensions(WxDxH) - 1000x1350x2200
